Reaction Wheels
![](/assets/Uploads/_resampled/ScaleWidthWyI5MDAiXQ/reaction-wheels-banner.png)
Our high-reliability, vacuum-lubricated reaction wheels are designed for picosatellites, nanosatellites and microsats. More than 240 wheels are on-orbit, performing well.
All Sinclair Interplanetary by Rocket Lab reaction wheels incorporate a built-in digital processor. They can be commanded over a serial bus to produce a desired speed, momentum or torque. They report digital telemetry concerning speed, temperature, voltage, current, and other health parameters.
![](/assets/Uploads/_resampled/ScaleHeightWyI4NTAiXQ/reaction-wheels-content.png)
![](/assets/Uploads/_resampled/ScaleHeightWyIzMDAiXQ/RW4-1Nms-2024-Web-Thumbnail.png)

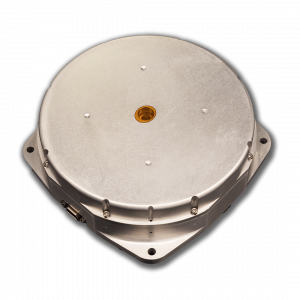

1 Nms
Our largest wheel, suitable for 100 kg Earth-observation missions. There are currently 52 units on-orbit on 13 spacecraft, with the first launch in June 2016.
Data Sheet & PricingInterface Control Document
Part Number Guide
Enquire now
![](/assets/Uploads/_resampled/ScaleHeightWyIzMDAiXQ/reaction-wheel-12-nms.png)

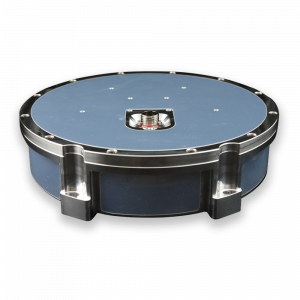

12 Nms
Our largest wheel in production designed for long-life and reliability. The 12Nms is ideal for high volume constellation missions and spacecraft with masses as high as 600-650 kg.
Data Sheet & PricingPart Number Guide
Enquire now
![](/assets/Uploads/_resampled/ScaleHeightWyIzMDAiXQ/reaction-wheel-200-400-nms.png)

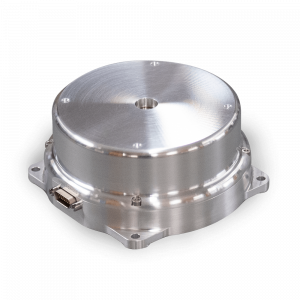

400/200 mNms
This wheel is optimized for torque and for radiation hardness. It can give performance equivalent to a 0.4 Nms CMG with 22.5 deg/sec gimbal rate at much reduced mass and complexity. Designed for high-agility remote sensing or science microsatellites.
Data Sheet & PricingInterface Control Document
Part Number Guide
Enquire now
![](/assets/Uploads/_resampled/ScaleHeightWyIzMDAiXQ/reaction-wheel-60-nms.png)

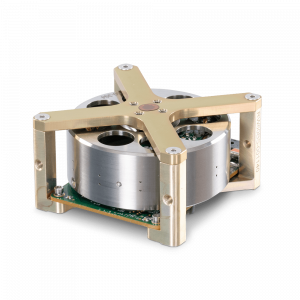

60 mNms
This wheel packs high-torque motor phase current control electronics into a small package. There are 52 units on-orbit on 16 spacecraft, with the first launch in June 2014.
Data Sheet & PricingInterface Control Document
Part Number Guide
Enquire now
![](/assets/Uploads/_resampled/ScaleHeightWyIzMDAiXQ/reaction-wheel-30-nms.png)

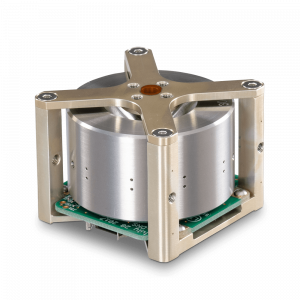

30 mNms
Sinclair Interplanetary’s first wheel design, and still the most popular. First launched in April 2008, there are now more than 50 units on-orbit. Many of these are onboard the University of Toronto SpaceFlight Lab's GNB series of spacecraft. They fit comfortably into a 6U to 12U cubesat.
Data Sheet & PricingInterface Control Document
Part Number Guide
Enquire now
![](/assets/Uploads/_resampled/ScaleHeightWyIzMDAiXQ/reaction-wheel-10-nms.png)

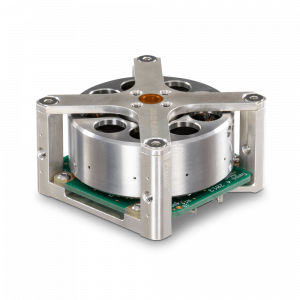

10 mNms
This wheel is ideally suited for smaller cubesats. There are 10 units on-orbit on 4 spacecraft, with the first launch in June 2014.
Data Sheet & PricingInterface Control Document
Part Number Guide
Enquire now
![](/assets/Uploads/_resampled/ScaleHeightWyIzMDAiXQ/reaction-wheel-3-nms.png)

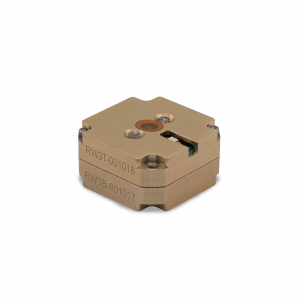

3 mNms
This wheel is so tiny that 3 wheels can be carried in a 1U Cubesat. A 4-wheel pyramid configuration is also possible.
Data Sheet & PricingInterface Control Document
Part Number Guide
Enquire now
